DAP4 FM

Audio processor with digital DSP technology specially developed for audio processing and modulation control on FM radio stations.

AUDIO PROCESSOR, ON AIR, FM, 5 BANDS, DIGITAL

Has digital and analog audio input and output format and an internal digital stereo encoder with highly professional performance (>80 dB @ 10Hz-16KHz) to send direct signal to the transmitter or link.

Processes two audio channels (left and right) has AGC inputs divided into 2 separate bands and a processing multiband with AGCs and limiters in 5 independent bands, plus a unique control intelligent pre-emphasis.

It has specific tools and resources for processing in FM that provide extremely competitive and high fidelity audio in the air. Enhancer of bass, middle and treble and stereo expansion incorporated into the product.

Can be controlled by software from anywhere through the internet or locally through a USB connection with your reading and a control software that is completely dynamic, enjoyable, intuitive and easy to operate.

The equipment already has 20 factory predefined presets for several different types of programming: rock, pop, generic, harmonic, etc. and 20 more presets that can be customized by the user. It’s also possible to schedule the automatic preset change during the day or during the week.

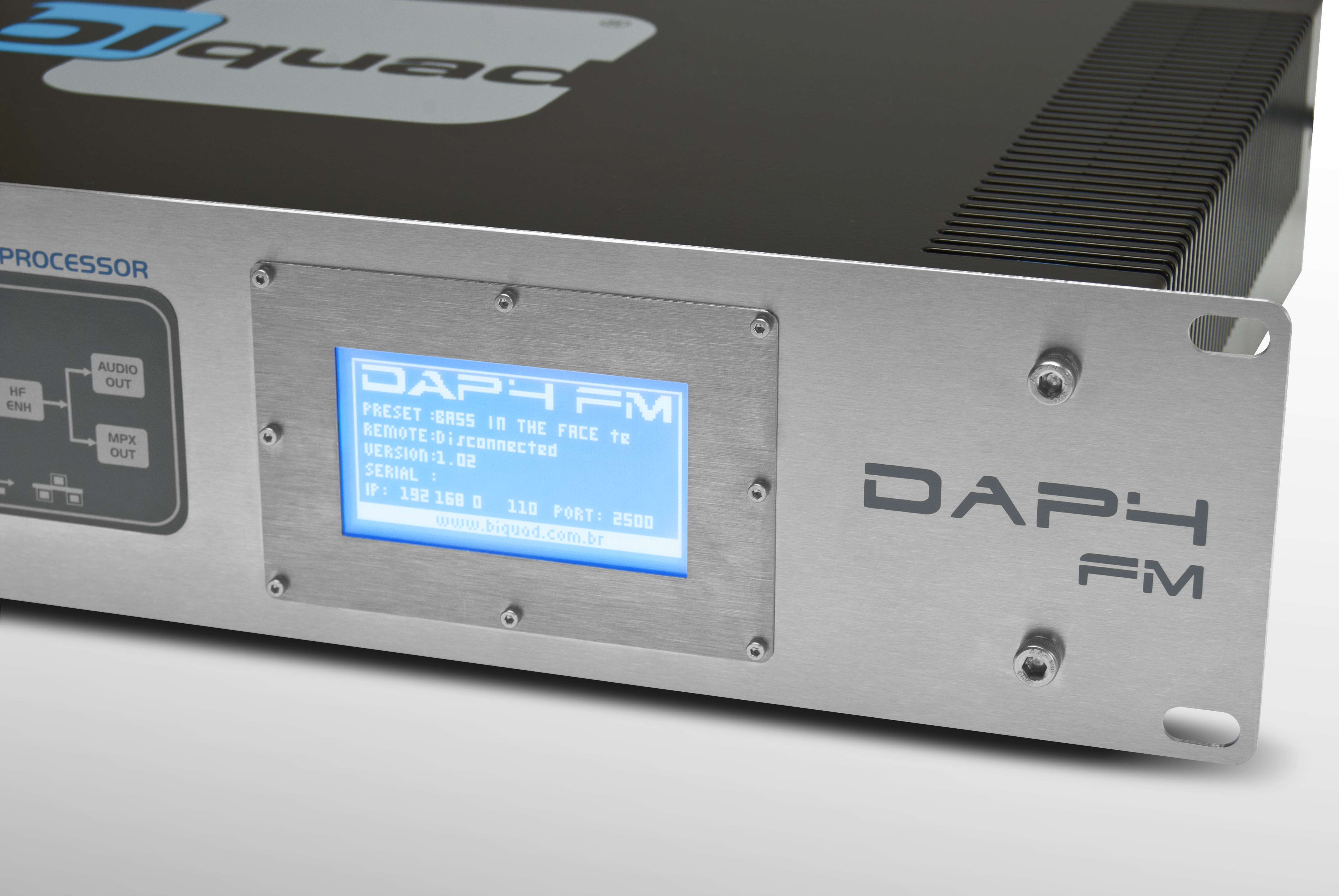

It has a touch screen display on the front panel that allow to access some of the control parameters and readings of the equipment.

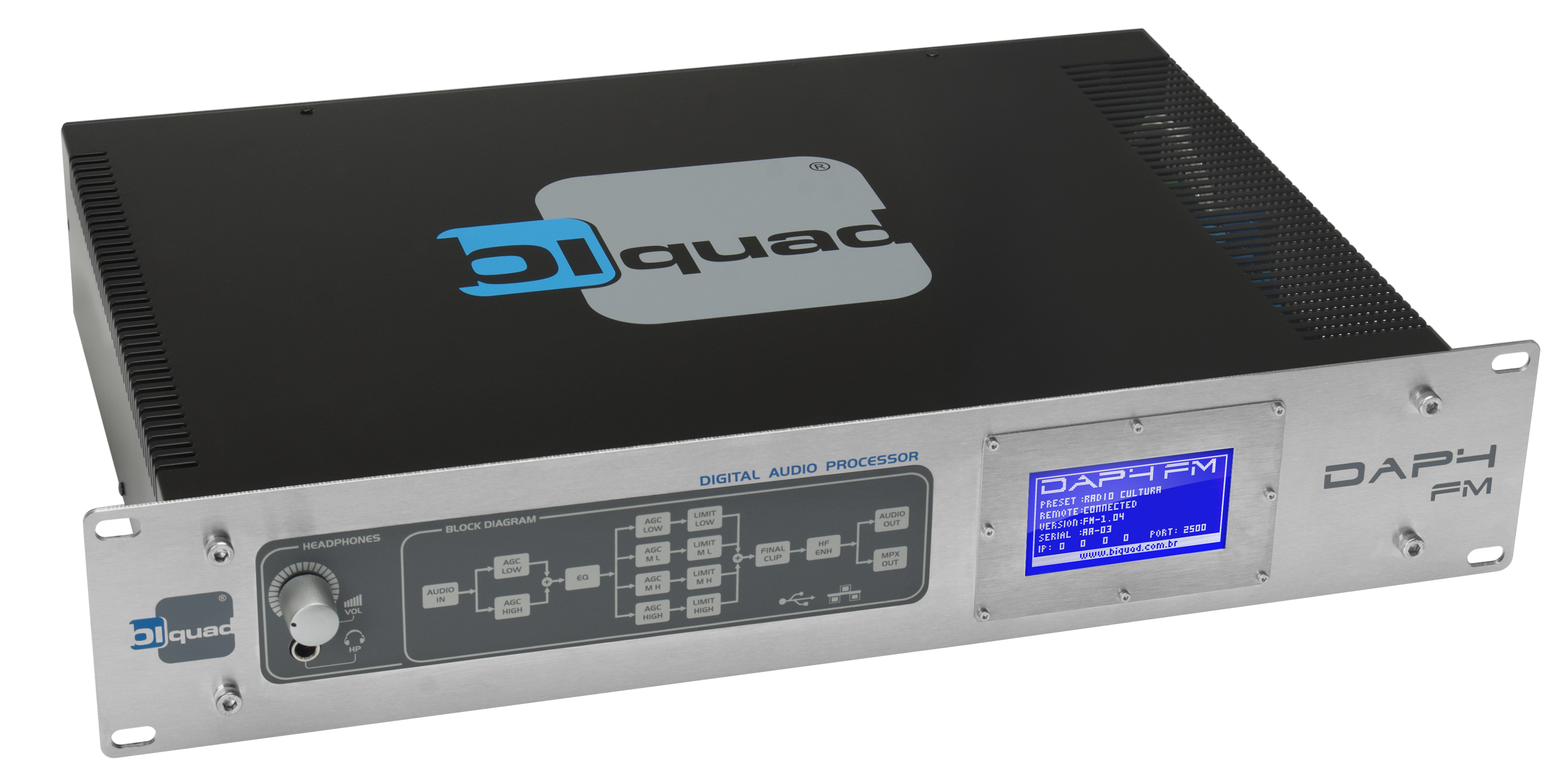

Provided in rack 19” standard width and two unit rack height (2UR) and 34cm deep in high standard finishing in brushed stainless steel.

US (Harmonized Code): 8543.70.96.10

Dimentions (Rack standard – WxHxD):
– 482,6 mm x 89 mm x 340 mm;
– 19” x 3,50” x 13,39” pol.;

Weight:
– 4 Kg without package;
– 5.5 Kg with package.

Cubage:
– 0,047853 m³

Supplied together with the product, can be installed in Windows XP, Vista and Win 7;Supplied together with the product, can be installed in Windows XP, Vista and Win 7;
  • Provide full access to all audio processing parameter controls as well as creation of new presets;
  • Protection of equipment by password;
  • Through a USB connection or via Ethernet (Network cable), with the software enabled, you can access the various blocks of the equipment;
  • The software is extremely intuitive and easy to use and represents, graphically, the block diagram of product operation, making it easier to understand each adjustment applied.
Click the image below and access a DAP4 Software demo:

COMPARE Challenge

Only the brand that has more know how in Audio Processing in Brazil can offer a challenge like this.
Compare the advantages and feel the benefits of an innovative product developed in Brazil with 100% national technology.

Original Audio

DAP4

DAP4 – Preset COMPETITIVE

DAP4 -Preset SUPERNATURAL

DAP4 -Preset SUPERPROCESSED

DAP4 -Preset EQUILIBRIUM

Mainly competitors

Omnia 6

Orban 8500

Orban 8200

BW DSP-X

Map with coverage of Radio stations using the DAP4 FM / AM / TV audio processor.

Do you have a DAP4 and your station is not on the map? Send email to marketing1@biquad.com.br.
